Mobile seedbed: Mobile seedbed, from the product name, the big advantage is that it can be moved. First of all, the movable seedbed makes the usable area of greenhouse greatly increased, and the space is saved, which  makes the whole greenhouse appear orderly. Secondly, in the transportation of multi pot flower seedlings, the mobile seedbed can be directly promoted, and it is time-saving and labor-saving. After that, the mobile seedbed is easy to install. Even if you have never installed it, you will be handy after reading the installation drawings provided by our factory. In recent years, mobile seedbed has been widely used in greenhouse and flower breeding base, which is convenient and beautiful. The main thing is to increase the use area of greenhouse. Mobile seedbed has been widely used for many years. Most customers have clearly understood the installation process of mobile seedbed, but some new customers still don't know the installation process of mobile seedbed, so Today for the mobile seedbed installation method to share with you, hope to help you. The installation steps are as follows:

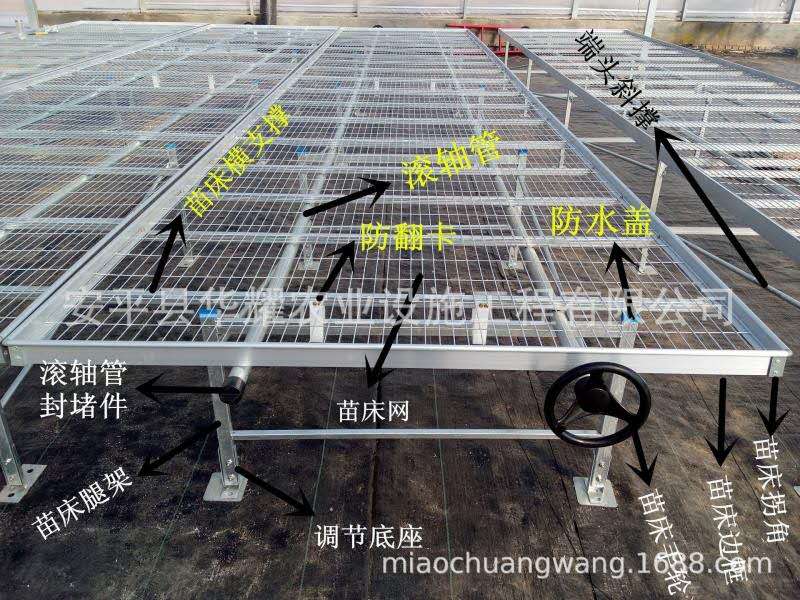

1. Install the seedbed support according to the layout and installation drawing of the moving seedbed.



2. Connect the end brace according to the drawing.



3. Combine the rolling element according to the seedbed drawing, and place the rolling element on the seedbed support.



4. Place a horizontal support on the rolling body, which is generally 50cm in length. The role of transverse support is to increase the bearing capacity of the seedbed table.



5. Combine the seedbed table on the rolling body, lay the steel wire mesh surface, and use aluminum alloy as the periphery.

6. Install the corresponding seedbed handwheel according to the diameter of the roller tube.



7. Install the anti rollover device to place the seedbed worktable to rollover.



8. Adjust the rolling element and the table so that when the table is in the middle position, it can move 200 mm to the left or right with the rotation of the rolling element.



9. Install and adjust the seedbed in the whole greenhouse.



10. Check each seedbed one by one and file the burr.



        The above is the installation instructions provided by Huayao greenhouse seedbed factory. We will send the detailed installation drawings with the goods. Anping Huayao seedling equipment factory specializes in the design, production and sales of greenhouse seedbed, tidal seedbed, seedbed network, new logistics seedbed, soilless cultivation, new strawberry three-dimensional trough, mushroom rack, greenhouse mobile sprinkler irrigation machine and other agricultural facilities. First hand supply, quality and quantity, reasonable price, looking forward to cooperating with you Jincheng to create brilliance.
